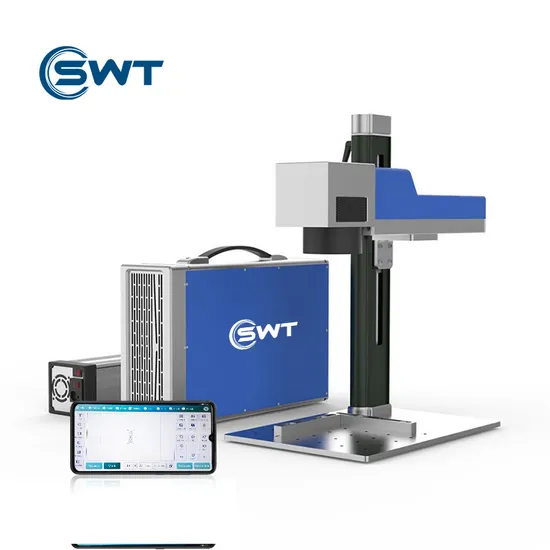

Enclosed Portable 20W 30W 50W 100W Fiber Laser Marking Machine for Metal
- Overview
- Product Parameters
- Company Profile
- Certifications
- Packaging & Shipping
- FAQ
Basic Info.
| Laser Visibility | Visible |
| Applicable Material | Metal |
| Cooling System | Air Cooling |
| Technical Class | Pulse Laser |
| Laser Wavelength | Fiber Laser |
| Laser Classification | Free Electron Laser |
| Type | Optical Fiber Laser Marking Machine |
| Marking Method | Scanning Marking |
| Certificates | CE SGS FDA RoHS ISO |
| Marking Materials | Ok Most Materials |
| Laser Power | 10-100W |
| Marking Speed | 7000mm/S |
| Marking Area | 100*100mm |
| Laser Type | Pulse Fiber Laser |
| Laser Brand | Raycus Bwt Max Jpt Ipg |
| Lifetime | 100,000 Hours |
| Weight | 30kgs |
| Key Word | Laser Marking Machine |
| Transport Package | Wooden Cases |
| Specification | 20W |
| Trademark | SWT |
| Origin | China |
| HS Code | 8479819000 |
| Production Capacity | 5916 Sets/Year |
Product Description
Fiber Laser Marking Machine - Main Features:
- Laser Source: Raycus / JPT / IPG / MAX brand.
- Control Card: Original EZCAD 2.14.9 / EZCAD 3 version.
- Laser Power: 20w 30w 50w 60w 70w100w.
- Marking Area: 110*110mm / 150*150mm/ 175*175mm/200*200mm/300*300mm.
- Galvo Head: Sino-galvo JD2206 / 3D Feeltek / 3D JCZ.
- Column Stand: Manual / Electric , 50cm / 68cm / 80cm.
- Optional Rotary Fixture: 50mm, 69mm, 80mm, 100mm, 120mm, 160mm, 200mm etc.
- Cyclops Camera optional: Camera can automatic recognize the marking position.
- More optional Parts: Conveyor table / Vacuum system / Electric XY table.
Technical Data :
Q: Are you trading company or manufacturer ?
A: We are factory. And we have been in the laser field for more than 10 years.
Q: How long is your delivery time?
A: Generally, it will take 7 to 10 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q: Do you provide samples? Is it free or extra ?
A: Yes, we could offer the sample for free charge, but customers should pay the courier cost.
Q: What is your terms of payment ?
A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance ,balance before shipment.
Enclosed 20w 30w 50w 100w fiber laser marking machine for metal
Product Parameters
| Technical parameter | |
| Item / Model | SWT-DB (20/30/50/60/70/100W) |
| Laser source | Domestic Raycus(Germany IPG/China Raycus/MAX/JPT Mopa color marking for optional) |
| Laser power | 20w, 30w, 50w,60w ,70w,100w |
| Laser type | Fiber laser |
| Graphic Format Supported | PLT,BMP,JPG,PNG,TIP,PCX,TGA,ICO, DXF |
| Marking speed | ≤9000mm/S |
| Max.Marking Depth | ≤0.4mm |
| Laser Wavelength | 1064nm |
| Marking lines | 1-10 marking lines(in the marking area) |
| Minimum line width | 0.01mm |
| Minimum character | 0.15mm |
| Resolution ratio | 0.01mm |
| Graphic format supported | BMP, PLT, DST, DXF, AI |
| Software supported | CorelDraw, Photoshop, AutoCAD |
| Equipment Dimensions | 420*320*800mm |
| Net Weight:4 | 45 KGS / 55KGS (different model has different weight,detailed can be confirmed with sellers) |
| Unit Power | ≤500W |
| Optional Spare Parts | Rotary/Protection glasses/outside red light/night light and so on. |
Company Profile
Certifications
Packaging & Shipping
FAQ
